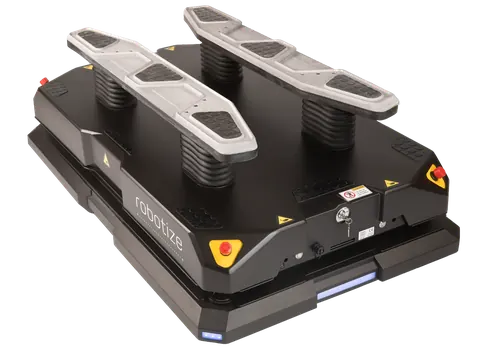

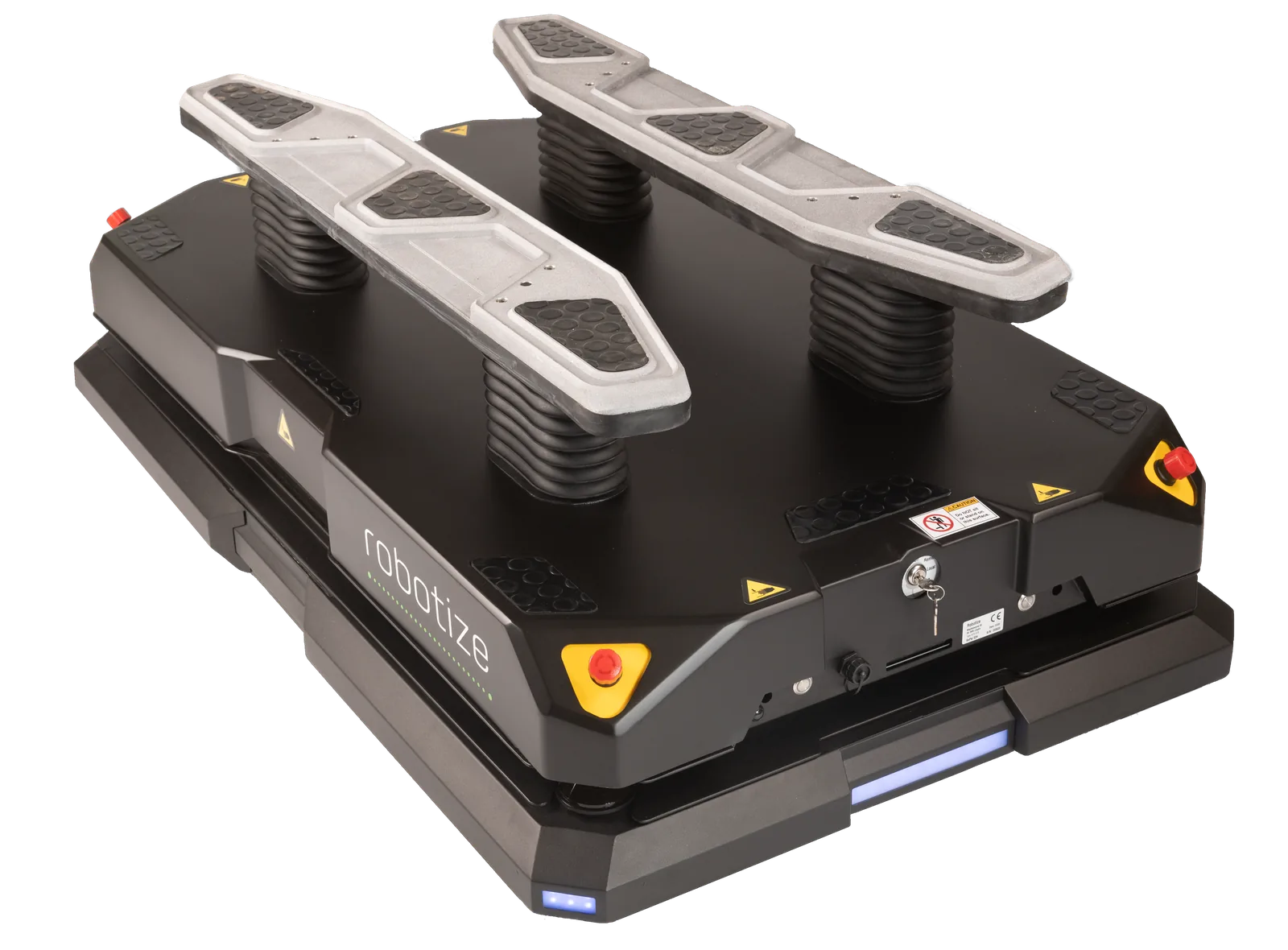

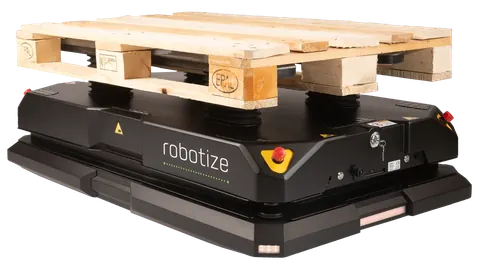

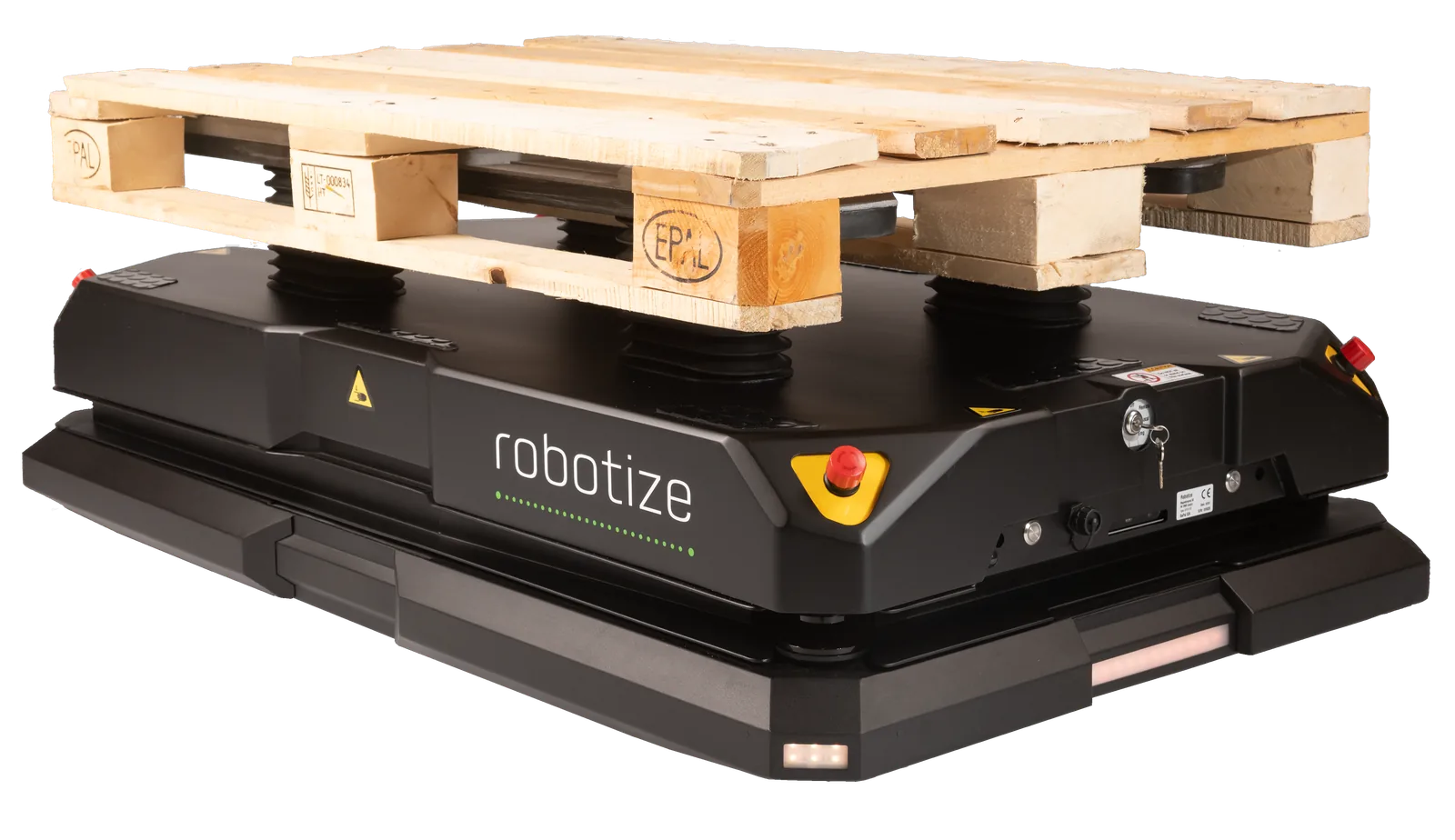

GoPal® E22
AMR for Euro and half-Euro pallets and other loads such as metal frames, up to 500 kg, from station to station.
Request a quote →Typical use cases
Where the GoPal® E22 is typically deployed. Is your situation different? Describe it and we check the fit.
Finished goods from end of line to wrapping or the warehouse
A full Euro or half-Euro pallet (up to 500 kg) leaves the line and has to reach the strapping or wrapping station, or the warehouse, without a forklift. The GoPal® E22 picks it up at a pallet or conveyor station and delivers it station to station.
Beyond pallets: metal frames and oversized loads

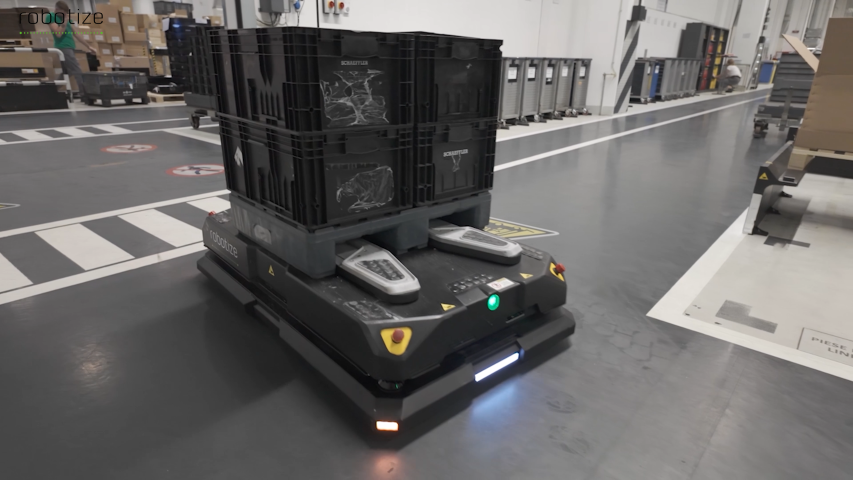

Not every load sits on a standard pallet. The GoPal® E22 also carries other loads on its lift, such as metal frames, stacked rings, crates or oversized parts, between stations in production.
Pallet transfer between production stations
Semi-finished goods move between lines or process steps on pallets. The GoPal® E22 runs these fixed routes autonomously among operators, which takes forklift traffic out of the production aisles.
Packaging material to packaging lines
A packaging line stops when cartons, film or labels run out. The GoPal® E22 brings the next pallet of packaging material to the line when an operator calls it, so nobody leaves the line to fetch it.
Empty pallets and waste
Empty pallets go back to the palletizer or pallet dispenser, and scrap leaves the production area on a pallet. These are frequent, low-value moves that an AMR can take over from operators.
Compatible accessories
Available from Robotize and its partners. We supply and integrate the ones your site needs.

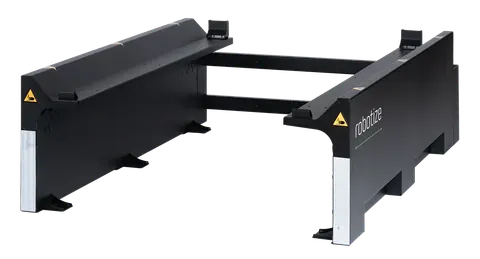

- Pallet Stations

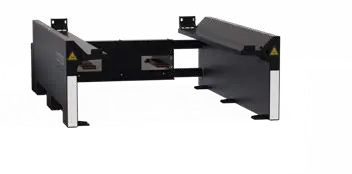

- Charging Station (E/EUW)

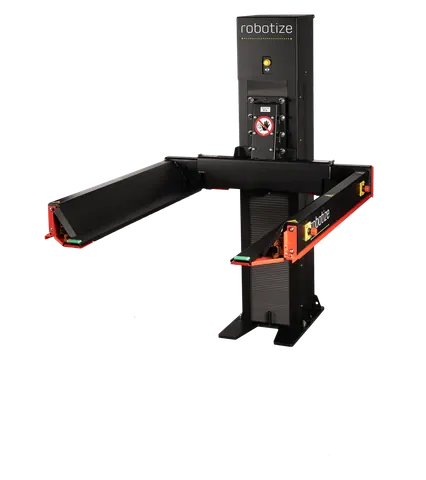

- Lift Station (EUW)

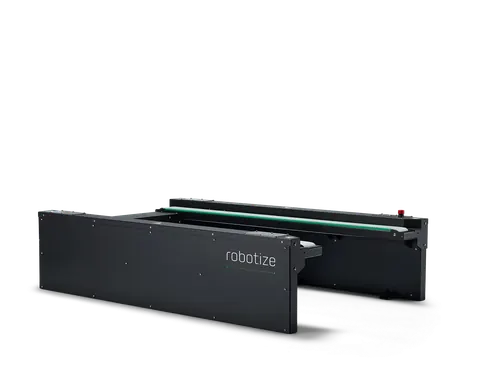

- Conveyor Station (E)

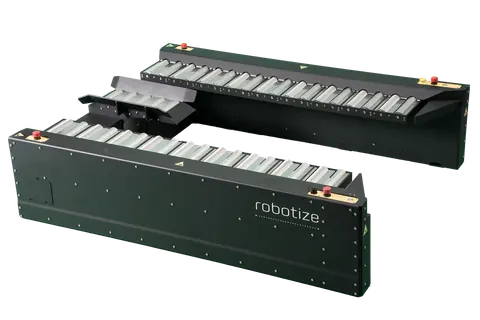

- Conveyor Station (EW)

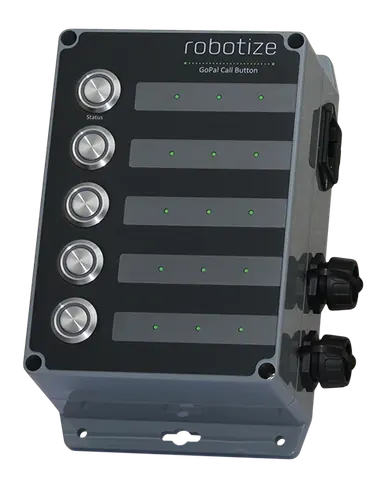

- Call buttons

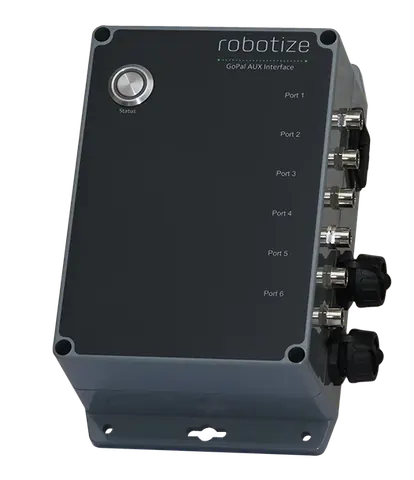

- IO Box

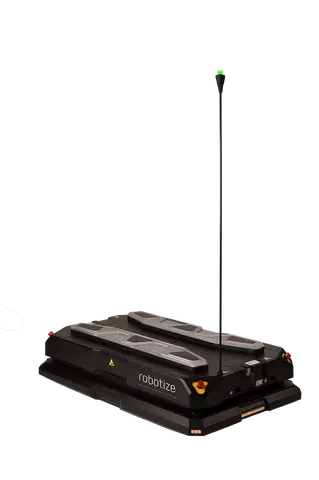

- Warning beacon

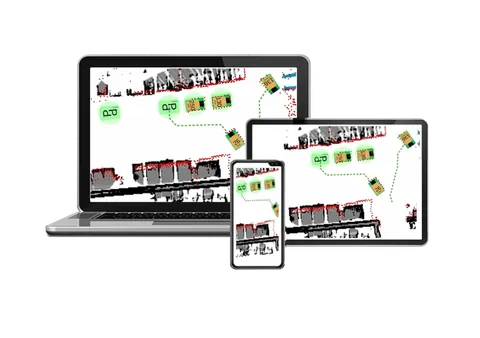

Compatible software
Fleet and control software from Robotize for this model.
Specifications
- Dimensions (L×W×H)
- 1400 × 860 × 340 mm
- Weight
- 187 kg
- Payload
- 500 kg
- Load carrier
- Euro and half-Euro pallets, plus other loads such as metal frames or oversized parts
- Max. speed
- 2.4 m/s (8.6 km/h)
- Battery
- LiFePO4, 48 V
- Charging time (30–95%)
- 45 min
- Operating time
- 6–14 h or up to 20 km
- VDA 5050
- Compatible, on request
Specifications from the manufacturer datasheet. Product images used with the manufacturer's permission. Pricing is quoted per project. GoPal® is a registered trademark of Robotize.
Interested in the GoPal® E22?
Tell us your routes and loads. We scope the fit, integrate it with your WMS or ERP, and quote per project. If another model fits better, we say so.
